Ultra Servers

Supermicro Ultra SuperServers are designed to deliver the highest performance, flexibility, scalability and serviceability to demanding IT environments, and to power mission-critical Enterprise workloads, including support for the 2nd generation Intel® Xeon® Scalable processors and a new class of big, affordable memory - Intel® Optane™ DC Persistent Memory. The Intel® UltraPath Interconnect (UPI) and Cross Bar technologies which provide direct communication between two CPUs in a dual socket server to catapult performance and dramatically reduce latency.

Available in 1U and 2U form factors, Ultra SuperServers support up to: 6TB DDR4-2933MHz memory in 24 DIMMs; SATA3 with optional SAS3 and NVMe support for increased storage bandwidth; a variety of Ultra Riser options, including built-in 1G, 10GBASE-T, 10G SFP+, and 25G Ethernet options; support for add-on SAS 3 HW/SW RAID controllers and additional PCI-E 3.0 slots. The range is the perfect fit for diverse workloads and applications and can be easily reconfigured for multiple Enterprise and Data Center applications in Virtualization, Big Data, Analytics and Cloud Computing.

  • NEW! Support for Dual, 2nd generation Intel® Xeon® Scalable processors up to 205W
  • NEW! Support for Intel® Optane™ DC Persistent Memory

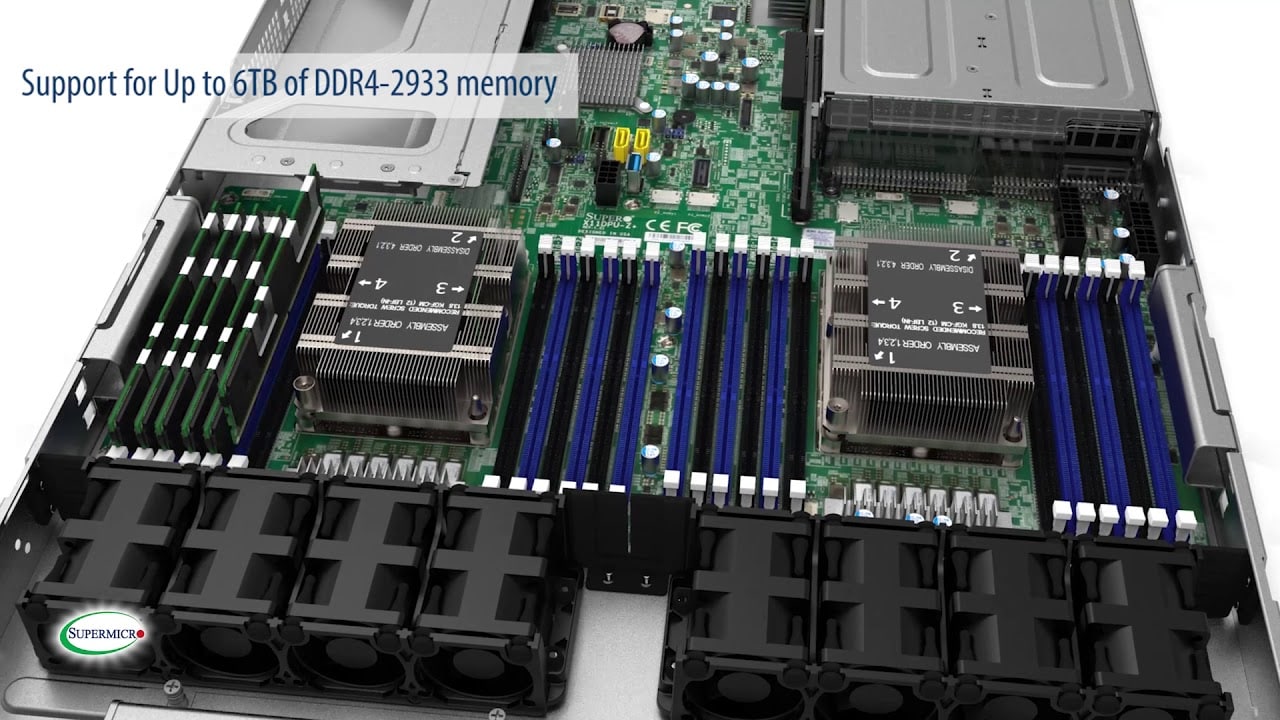

  • Up to 6TB DDR4-2933MHz memory in 24 DIMM slots
  • 100/40/25/10G Ethernet
  • NVMe/SAS3/SATA3 Drive Bays
  • Up to 8/4 PCI-E 3.0 Expansion Slots
  • Redundant Titanium Level (96%+) Power Supplies

Resources

20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28
  • Virtualization, Cloud Computing, High End Enterprise Server, SDS
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid, CPU2: 10 NVMe)
  • Up to 2 PCI-E 3.0 x8 (FH, FL)
  • 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A), 2 USB 2.0 (front)
  • 8 heavy duty fans w/ optimal fan speed control, 2 air shroud
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

20 NVMe support • 24 DDR4 DIMM • 2x 25G SFP28
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 20 NVMe + 4 SAS3/SATA
  • 1 PCI-E 3.0 x8 (LP)
  • 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 20 SAS3 + 4 SAS3/NVMe
  • 1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
  • 4 Gigabit Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe
  • 1 PCI-E 3.0 x16 (FH, 10.5"L); 5 PCI-E 3.0 x8 (FH, 10.5"L); 1 PCI-E 3.0 x8 (LP); 1 PCI-E 3.0 x8 (internal LP)
  • 4 Gigabit Ethernet ports, 1 Dedicated IPMI port
  • 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

Xeon 6144 and 12x 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6144 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666 MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
Xeon 6146 and 12x 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6146 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
    1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
Xeon 6154 and 12x • 16GB DDR4-2666MHz included
  • Financial Analysis, Business Critical Applications, Enterprise Server
  • Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors (Dual Intel® Xeon® Gold 6154 Processors included); Dual UPI up to 10.4GT/s
  • 16 DIMMs; up to 2TB 3DS ECC DDR4-2666MHz RDIMM/LRDIMM
  • 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
  • 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
  • 4x 1GbE ports, 1 Dedicated IPMI port
  • 1 VGA, 1 Serial, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
  • 2 PCI-E 3.0 x16 Full-height, 10.5" L slots
  • 2x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
  • 8 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

10x 2.5" SATA3 or Opt. • 8x SAS3 + 2x NVMe/SATA • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-TR25M
  • Networking Options:
    • SYS-1029U-TR4 - 4x 1GbE ports
    • SYS-1029U-TR4T - 4x 10GBase-T ports
    • SYS-1029U-TRT - 2x 10GBase-T ports
    • SYS-1029U-TRTP - 2x 10G SFP+ ports
    • SYS-1029U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-1029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

10x 2.5" SAS3 • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
  • 2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-E1CR25M
  • Networking Options:
    • SYS-1029U-E1CR4 - 4x 1GbE ports
    • SYS-1029U-E1CR4T - 4x 10GBase-T ports
    • SYS-1029U-E1CRT - 2x 10GBase-T ports
    • SYS-1029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-1029U-E1CRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-1029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 COM/Serial
  • 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

4 NVMe support • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays; 4 NVMe/SAS3 hybrid ports, 2 internal M.2 (1 SATA3, 1 NVMe)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • Networking Options:
    • SYS-6019U-TN4R4T - 4x 10GBase-T ports
    • SYS-6019U-TN4RT - 2x 10GBase-T ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

4x 3.5" SATA3 • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 4 Hot-swap 3.5" drive bays
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-6019U-TR25M
  • Networking Options:
    • SYS-6019U-TR4 - 4x 1GbE ports
    • SYS-6019U-TR4T - 4x 10GBase-T ports
    • SYS-6019U-TRT - 2x 10GBase-T ports
    • SYS-6019U-TRTP - 2x 10G SFP+ ports
    • SYS-6019U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    • SYS-6019U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies

*Contact your Supermicro sales rep for more info.

24 NVMe support • 4x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe)
  • 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (LP)
  • 4x 10GBase-T ports, 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1600W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

24x 2.5" Drive Bays • Opt. 20 SAS3 + 4 NVMe/SAS3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; 14 SATA (opt. 20 SAS3 + 4 NVMe/SAS3)
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-2029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-2029U-TR4 - 4x 1GbE ports
    • SYS-2029U-TR4T - 4x 10GBase-T ports
    • SYS-2029U-TRT - 2x 10GBase-T ports
    • SYS-2029U-TRTP - 2x 10G SFP+ ports
    • SYS-2029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

24x 2.5" SAS3 Opt. 4 NVMe • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-2029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-2029U-E1CR4 - 4x 1GbE ports
    • SYS-2029U-E1CR4T - 4x 10GBase-T ports
    • SYS-2029U-E1CRT - 2x 10GBase-T ports
    • SYS-2029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-2029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port
  • 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

12x 3.5" SATA3 Opt. 4 NVMe • Flexible Network Opt.
  • Virtualization, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe and 2 Rear Hot-swap 2.5" drive bays
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-6029U-TR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-6029U-TR4 - 4x 1GbE ports
    • SYS-6029U-TR4T - 4x 10GBase-T ports
    • SYS-6029U-TRT - 2x 10GBase-T ports
    • SYS-6029U-TRTP - 2x 10G SFP+ ports
    • SYS-6029U-TR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

12x 3.5" SAS3 opt. 4 NVMe • Flexible Network Opt.
  • Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 12 Hot-swap 3.5" drive bays; 12 SAS3 via opt. AOC (4 hybrid ports - 4 NVMe opt.)
  • Expansion Slots:
    • 8 PCI-E Slots: 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8, 1 Internal PCI-E 3.0 x8
    • 7 PCI-E Slots (SYS-6029U-E1CR4T): 2 PCI-E 3.0 x16, 5 PCI-E 3.0 x8
  • Networking Options:
    • SYS-6029U-E1CR4 - 4x 1GbE ports
    • SYS-6029U-E1CR4T - 4x 10GBase-T ports
    • SYS-6029U-E1CRT - 2x 10GBase-T ports
    • SYS-6029U-E1CRTP - 2x 10G SFP+ ports
    • SYS-6029U-E1CR25M - 2x 25GbE SFP28 ports
  • 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
  • 3 USB 3.0 (2 rear, 1 Type A)
  • 4 heavy duty 8cm PWM fans
  • 1000W Redundant Titanium Level (96%) Power Supplies

*Contact your Supermicro sales rep for more info.

10x 2.5" SAS3/SATA3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 2x 10G SFP+ and 2 GbE (-E1CRTP+) / 4 GbE (-E1CR4+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 front, 1 Type A)
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
10 NVMe support • 24 DDR4 DIMM • 2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 3 PCI-E 3.0 x8 slots (2 FH 10.5" L, 1 LP)
  • 2x 10GBase-T, 1 Video, 1 Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
2 NVMe + 8 SATA3 2.5" (SAS3 opt.) • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 2 NVMe + 8 SATA3, SAS3 optional
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 2x 10G SFP+ (-TNRTP+) / 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 5 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
10x 2.5" SATA3 or Opt. • 8x SAS3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 10 Hot-swap 2.5" drive bays; 10 SATA3 or Optional 8 SAS3
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
8x 2.5" SAS3 + 2x SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2643 v3 CPUs and 8x 8GB DDR4 DIMMs (64GB total)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 16 DIMM slots; up to 1TB DDR4
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2x SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2687W v3 CPUs and 8x 8GB DDR4 DIMMs (64GB total)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 16 DIMM slots; up to 1TB DDR4
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 8 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2643 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
  • 8x Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2687W v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC • 4 GbE LAN
  • Optimized for Low-Latency/Low-Jitter apps. with BIOS optimizations
  • Pre-installed w/ accelerated dual E5-2689 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
  • 8 Hot-swap 2.5" SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
  • 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
  • Hyper-Speed hardware acceleration technology
24x 2.5" SAS3 via Expander & AOC, • 4 NVMe • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" SAS3 via Expander and AOC; 4 NVMe
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-E1CNRT+), 6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-E1CNR4T+)
  • 4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
24 NVMe support • 4x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" NVMe bays (4 hybrid ports - optional SAS3 support via AOC); 2x 2.5" Hot-swap SATA3 drive bays (rear)
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 slots (FH 10.5" L), 1 PCI-E 3.0 x8 (LP) slot
  • 4x 10GBase-T ports, 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
  • System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
  • 4x 80mm heavy duty PWM fans
  • 1600W Redundant Titanium Level (96%) Power Supplies
24x 2.5" Drive bays • 4 NVMe ports + 8 SATA3 ports • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" drive bays; 4 NVMe ports + 8 SATA3 ports; 24 SAS3 ports optional via AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-TNR4T+)
    6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-TNRT+)
  • 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
24x 2.5" SATA3/SAS3 • GbE/10GBase-T/10G SFP+
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 24 Hot-swap 2.5" drive bays; Optional 24 SAS3
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 1 PCI-E 3.0 x16&7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    1 PCI-E 3.0 x16&6 PCI-E 3.0 x8 slots (4 FH, 2 LP) 2028U-TR4T+
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
4x 3.5" SATA3 • Flexible Network Opt.
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 750W Redundant Platinum Level Power Supplies
12x 3.5" SAS3 via Expander & AOC, 4 NVMe • 24 DDR4 DIMM • 4x/2x 10GBase-T
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" SAS3 via Expander and AOC; 4 NVMe
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • SYS-6028U-E1CNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    SYS-6028U-E1CNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
  • 4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
12x 3.5" Drive bays • 4 NVMe ports + 8 SATA3 ports • 24 DDR4 DIMM • 4x/2x 10GBase-T •
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" drive bays; 4 NVMe ports + 8 SATA3 ports; 12 SAS3 ports optional via AOC
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • SYS-6028U-TNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    SYS-6028U-TNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
  • 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
12x 3.5" drive bays • Opt. 12 SAS3 • GbE/10GBase-T/10G SFP+
  • Virtualization Hosting, Cloud Computing, Data Center
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" drive bays; Optional 12 SAS3
  • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 1 PCI-E 3.0 x16&7 PCI-E 3.0 x8 slots (5 FH, 2 LP)
    1 PCI-E 3.0 x16&6 PCI-E 3.0 x8 slots (4 FH, 2 LP) 6028U-TR4T+
  • 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T
    (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
12x 3.5" drive bays: • SATA default, SAS3 Opt. Opt. 4 NVMe via AOC • 4 GbE LAN
  • Remote Workstation, EDA/CAD license server, High Performance single node compute
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 12 Hot-swap 3.5" drive bays: SATA3 default, SAS3 Optional, 4 Optional NVMe via AOC
  • 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
  • 3 PCI-E 3.0 x16 (FHFL), 3 PCI-E 3.0 x8 (1 in x16, 1 LP, 1 internal LP)
  • 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
  • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
  • 4 heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Titanium Level (96%) Power Supplies
  • Hyper-Speed hardware acceleration technology
