SuperStorage 6048R-E1CR90L (Complete System Only)

  Products  Systems   SuperStorage   [ 6048R-E1CR90L ]









Integrated Board
X10DSC-TP4S

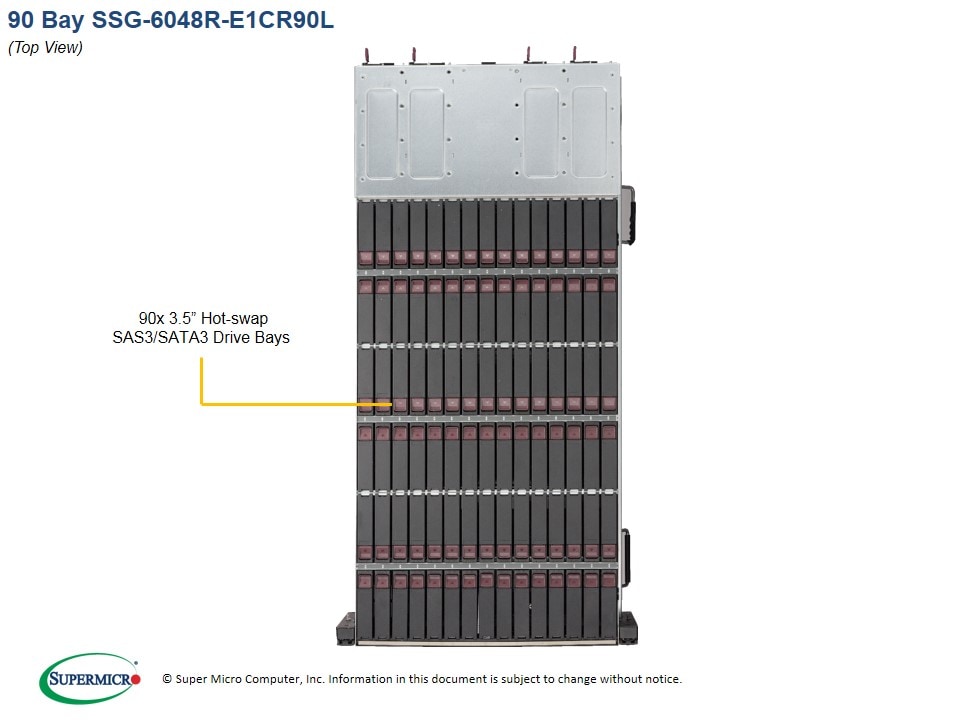

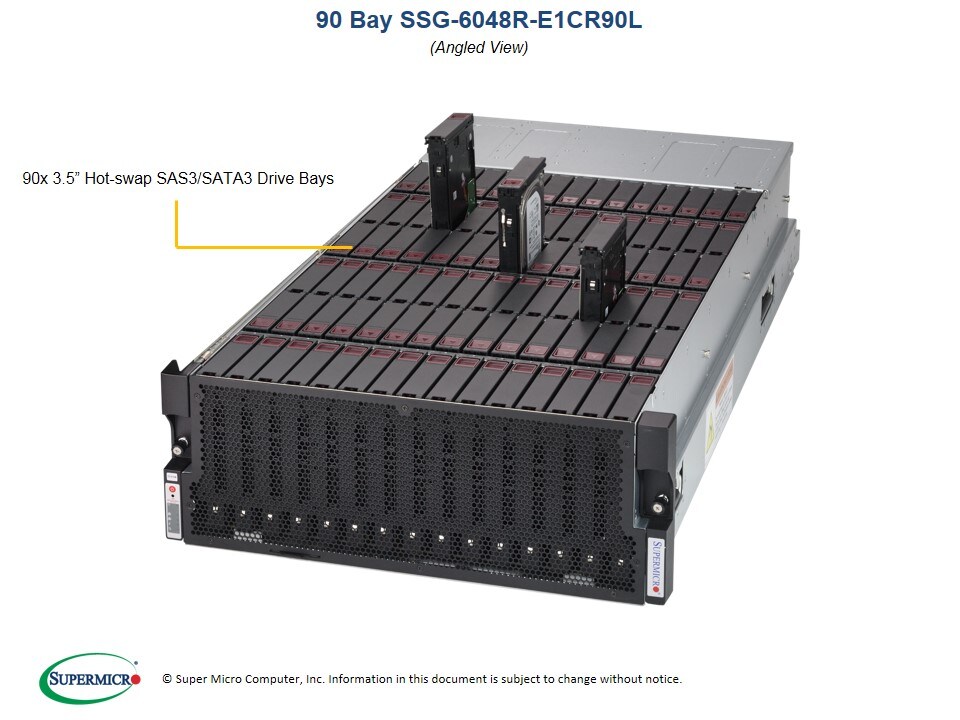

Views: | Angled View | Top View |

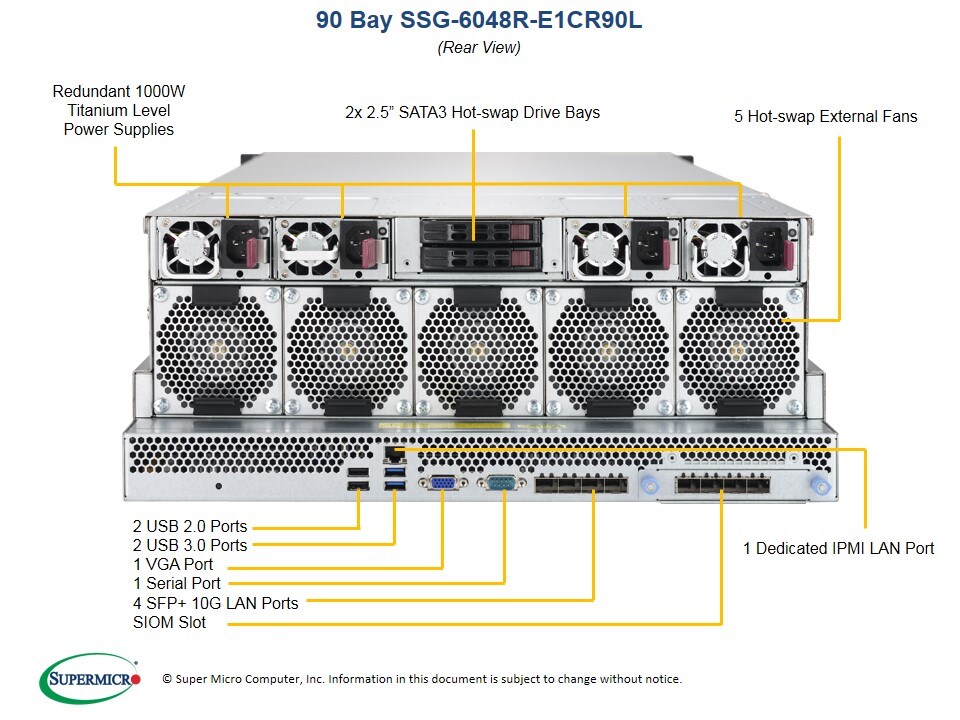

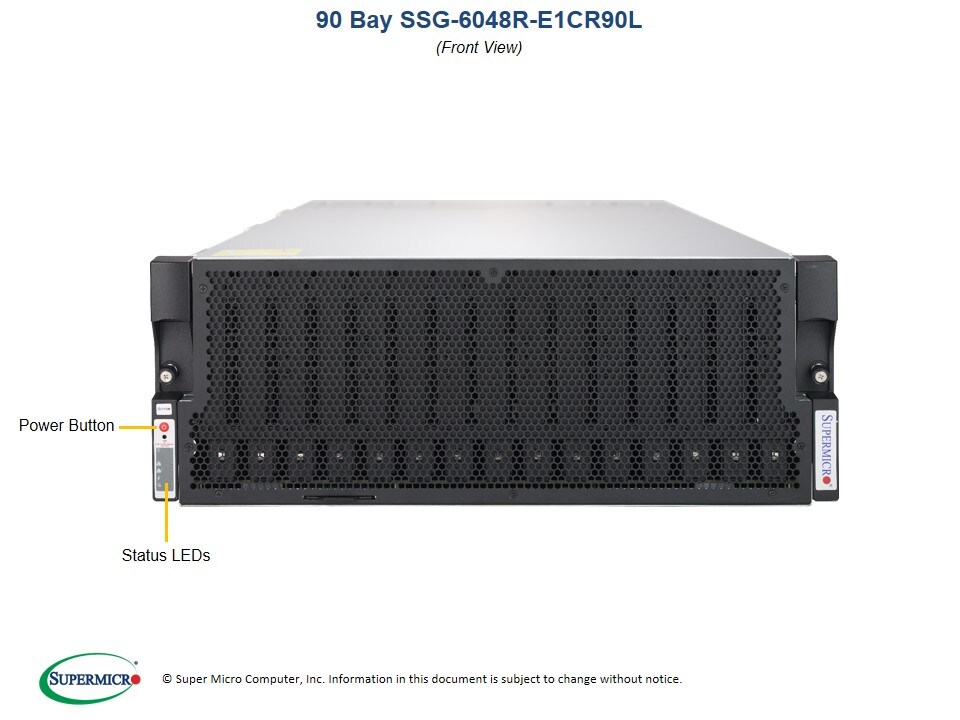

| Front View | Rear View |



Key Features

1. Dual socket R3 (LGA 2011) supports

    Intel® Xeon® processor E5-2600

    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC 3DS LRDIMM , up to

    DDR4- 2400MHz ; 8x DIMM slots
3. SIOM card for multiple IO options
4. 90x 3.5" Hot-swap SAS3/SATA3 drive

    bays; 2x 2.5" rear Hot-swap SATA

    drive bays
5. 2 Onboard Broadcom 3008 SAS3 controllers
6. Server remote management: IPMI 2.0

    / KVM over LAN / Media over LAN
7. 5x 8cm hot-swap redundant PWM fans
8. 4x 1000W Redundant Power Supplies

    Titanium Level (96%) Certified
    Supermicro 90-Bay Storage


Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, and 45 HDDs).


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options   Tested SIOM


Product SKUs
SSG-6048R-E1CR90L
  • SuperStorage 6048R-E1CR90L (Black)

Motherboard


Super X10DSC-TP4S

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *

  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • 2 Onboard Broadcom 3008 SAS3 controllers
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Quad LAN with Intel® X710® Family Controller
  • SIOM card for multiple IO options
Graphics
  • ASPEED AST2400 BMC

Input / Output
LAN
  • 4 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 4 USB 2.0 ports (2 rear + 2 via headers)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946TS-R3KBP

Dimensions and Weight
Width
  • 17.6" (447mm)
Height
  • 7" (178mm)
Depth
  • 38.2" (970mm)
Weight
  • Gross Weight: 235 lbs (106.6 kg)
  • Net Weight: 160 lbs (72.6 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System information LED
  • Power fail LED

Drive Bays
Hot-swap
  • 90x 3.5" Hot-swap SAS3/SATA3 drive bays
  • 2x 2.5" rear Hot-swap SATA drive bays

Backplane
SAS3/SATA3 single expander per backplane

System Cooling
Fans
  • 5x 8cm hot-swap redundant PWM cooling fans

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
Dimension

(W x H x L)
  • 73.5 x 40 x 185 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X10DSC-TP4S

CSE-946TS-R3KBP
1

1
Super X10DSC-TP4S Motherboard

4U Chassis
* Drive Tray(s) MCP-220-94601-0N 90 SC946ED 3.5" / 2.5" tool-less HDD tray
* Drive Tray(s) MCP-220-94609-0N 1 SC946E1C (90 bay server) backplane tray include
Add-on Card / Module AOM-SAS3-946E90-P 1 90 Bay Server Expander Board, 3 SAS3EXP48. Support 16-PHY to on board HBA for SAS3/SAS2/SATA3/SATA2
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-946BA 3 30-port SC946 SAS3 12Gbps top-loaded bottom board, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0047L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,FLAT,50CM,28AWG
Cable 2 CBL-0303L 1 4 pin to 4 pin power cable, S-RA, 40CM. 20AWG
Cable 3 CBL-0481L 2 SATA,INT,ROUND,ST-ST,81CM,30AWG
Cable 4 CBL-CDAT-0716 2 CBL,I2C,1X4F/P2.5 TO 1X4F/P2.5,25CM,26AWG,BRN/BLK-SHUNT/ORG
Cable 5 CBL-CDAT-0899 1 CBL,I2C,1X4F/P2.5 TO 1X4F/P2.5,65CM,26AWG,BRN/BLK-SHUNT/ORG
Cable 6 CBL-PWCD-0579 4 PWCD,US,IEC60320 C14 TO C13,6FT,14AWG
Cable 7 CBL-PWEX-0749 1 Powerlug to 5.7 Radsok, black 12AWG, 37cm for SC946,RoHS/REACH
Cable 8 CBL-PWEX-0750 1 Powerlug to 5.7 Radsok, black 12AWG, 63.2cm for SC946,RoHS/REACH
Cable 9 CBL-PWEX-0751 1 Powerlug to 5.7 Radsok, black 12AWG, 85.5cm for SC946,RoHS/REACH
Cable 10 CBL-PWEX-0752 1 Powerlug to 5.7 Radsok, yel 12AWG, 37cm for SC946,RoHS/REACH
Cable 11 CBL-PWEX-0753 1 Powerlug to 5.7 Radsok, yel 12AWG, 63.2cm for SC946,RoHS/REACH
Cable 12 CBL-PWEX-0754 1 Powerlug to 5.7 Radsok, yel 12AWG, 85.5cm for SC946,RoHS/REACH
Cable 13 CBL-PWEX-0760 1 PWR EXT,2X4F/P4.2 TO 2X4F/P4.2,CPU 12V,13CM,16AWG,RoHS/REACH
Cable 14 CBL-PWEX-0900 2 PWR EXT,2X4F/P4.2 TO 2X4F/P4.2,CPU 12V,17CM,16AWG
Cable 15 CBL-SAST-0924 1 SLIMLINE SAS CABLE KIT SC946MB, SET OF 15,RoHS/REACH
Heatsink / Retention SNK-P0058PSC 2 2U Passive CPU Heat Sink for SC946 90-bay Server
* Power Supply PWS-1K04A-1R 4 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.




Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SIOM Network Card(s) AOC-MGP-i2M

BKT-0093L
1

1
SIOM 2-port GbE, Intel i350-AM2


AOC-MGP-i4M

BKT-0094L
1

1
SIOM 4-port GbE, Intel i350-AM4


AOC-MTGN-i2SM

BKT-0095L
1

1
SIOM 2-port 10G SFP+, Intel 82599ES


AOC-MTG-i4SM

BKT-0096L
1

1
SIOM 4-port 10G SFP+, Intel XL710


AOC-MTG-i2TM

BKT-0093L
1

1
SIOM 2-port 10GBase-T, Intel X550-AT2


AOC-MTG-i4TM

BKT-0094L
1

1
SIOM 4-port 10GBase-T, Intel X550-AT2


AOC-MH25G-m2S2TM

BKT-0111L
1

1
SIOM Dual-port 25GbE SFP28 based on Mellanox ConnectX-4 Lx EN and Dual-port 10GBase-T based on Intel X550
Hide Parts List
