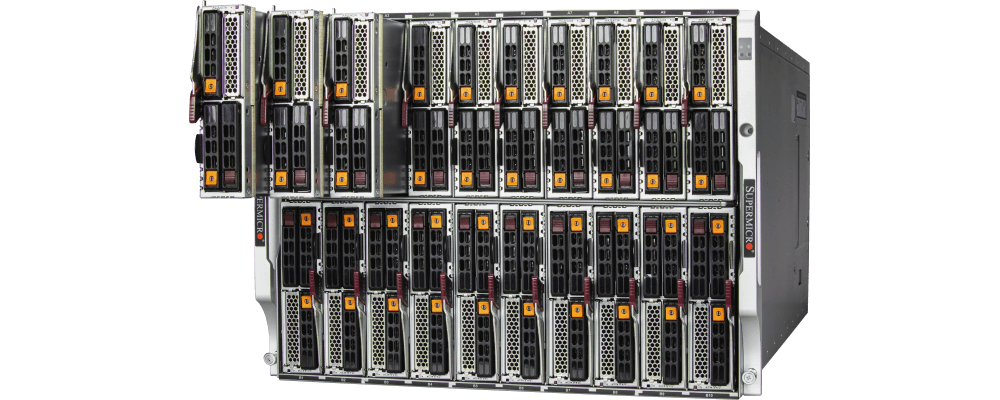

SuperBlade® ( Brochure | Manual )

SuperBlade® Offers:

  • Supports up to 2nd Generation Intel® Xeon® Scalable processors
  • UP, DP and 4-way blade servers
  • Up to 280 nodes per rack
  • Hot-swap U.2 NVMe, up to 8 drives per blade server
  • 100G EDR InfiniBand, 100G Intel® Omni-Path, and 25G/10G/1G Ethernet switches
  • Redundant AC/DC power supplies
  • Battery Backup Power (BBP® ) modules
  • Supermicro RSD and Redfish RESTful APIs supported
  • Free-air cooling designs deliver lowest PUE

Why SuperBlade®

SuperBlade® offers many unique advantages that differentiate it from competitors' blade products and traditional rack-mount solutions. Customer benefits include maximum density, affordability, reduced management costs, lower power consumption, optimal ROI, and high scalability - and in most applications, blade servers would reduce system acquisition costs.

While other blade suppliers only offer general-purpose blade servers, the SuperBlade® family enables full optimization for a wide array of mission-critical and compute-intensive applications. With in-house design engineering agility to accommodate customer needs rapidly, SuperBlade® revolutionizes modular computing architecture by offering several advanced application-optimized models such as Enterprise Blade Server, Data Center Optimized Blade, Workstation Blade and Office Blade.

Saving the Green

With SuperBlade® servers, you can help preserve not only our green planet, but keep red ink off your books with green cash savings. A SuperBlade server can save more than 100 watts over a traditional discrete 1U rack-mount server. These savings add up quickly when your SuperBlade chassis is fully populated with 10 servers. By eliminating the overhead in 1U discrete servers and using the high efficiency (up to 94%) power supplies, SuperBlade can save you more than $1,000 per year in power* for your servers and even more when you add the reduced cooling costs. At the same time, you will reduce your carbon dioxide emissions by over 5.5 metric tons**, the equivalent of planting 1.7 acres of trees.

* Your electricity costs will vary by location.
** According to Energy Information Agency (a statistical agency of the U.S. Department of Energy), saving one kilowatt hour of electricity reduces carbon dioxide emissions by 1.43 pounds.

Disaggregated Server Architecture – Partner Recognitions


  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 280 CPUs per 42U Rack
  • Intel® C622 chipset
  • 16 DIMMs; up to 512GB VLP ECC DDR4-2933 MHz RDIMM
  • Storage Options:
    • 4429P-T2N - 2 Hot-plug 2.5" SATA3 HDD/SSD/NVMe
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 6.5" x 1.2" x 23.5"
